Frame Inspection
Pre-plaster (lock up)
Frame Inspection

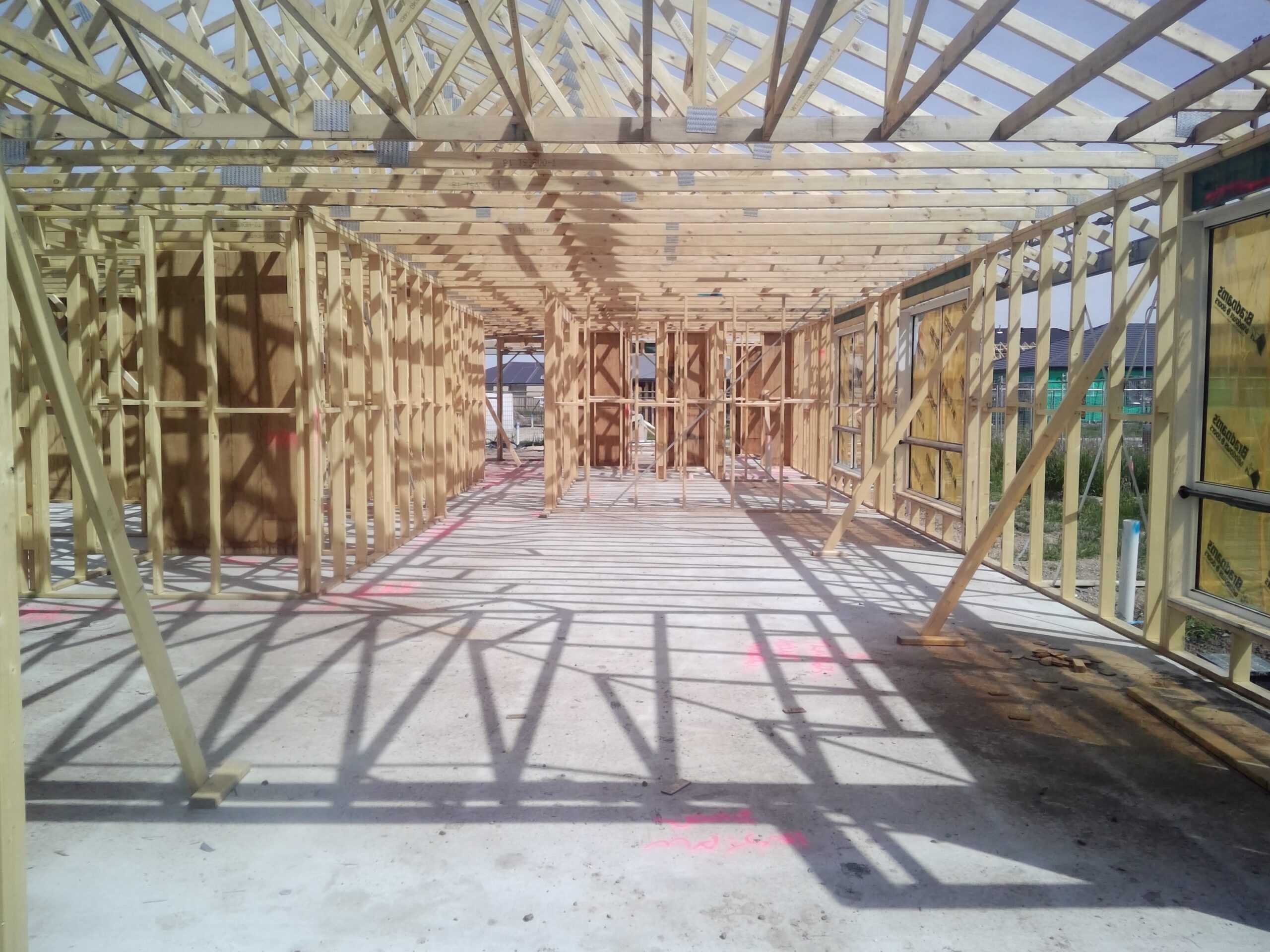

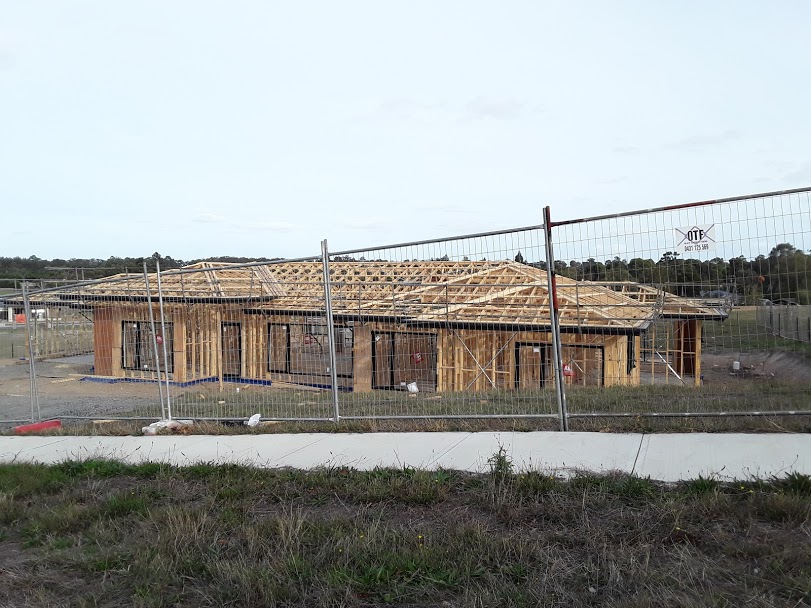

These two inspections are carried out at the same time. The slab and frame inspection are a comprehensive and detailed assessment of all post-pour slab components as well as the home’s structural frame. During this inspection, we thoroughly examine the framing to confirm it is structurally sound and built to required standards.
This stage is critically important. Together with the slab, the frame forms the structural “skeleton” of your home. Any flaws in either component can lead to significant defects throughout the rest of the building.
Utilising the NCC and AS 2870, AS 1684 and AS 4440 we check items such as-
Frame
- Bracing components
- Wall straightening (plumb)
- Brackets and other connections
- Frame overhang
- Junctions
- Load paths
- Noggins
- Bulkheads
- Flooring laid correctly
- Nails and other connections
- Correct materials used and signs of damage etc
- Roof truss layout and connections.
Utilising the NCC AS1684, AS3999, AS4200, AS1562 and more.
all outstanding frame inspection defects are completed
Walls straight and plumb
plumbing rough ins done
electrical rough ins done
ducted heating rough-ins done
Insulation installed correctly.
Wall wrap installed correctly.
Roof installation complete and house is water tight.
Plumbing and electrical works to be installed and compliant.
Bulkheads, Windows, cornice lines.
Doors installed plumb and level.
The roofline and tile/metal roofing installation.
All shower bases are checked for correct installation in accordance with their manufacture’s guidelines.
All baths are checked for proper support.
Ducting for WC and rangehood exhaust fans having been properly installed.
Timber door sills are properly flashed.
